OpenCPI Analog Devices ADRV9361-Z7035 Getting Started Guide

This document provides installation information that is specific to the Analog Devices™ ADRV9361-Z7035 System on a Module (SOM). Use this document when performing the tasks described in the chapter “Enabling OpenCPI Development for Embedded Systems” in the OpenCPI Installation Guide. This document supplies details about enabling OpenCPI development on the ADRV9361-Z7035 SOM that can be applied to the procedures described in the referenced OpenCPI Installation Guide chapter.

The following documents can also be used as reference to the tasks described in this document:

Note that the OpenCPI Glossary is also contained in both the OpenCPI Installation Guide and the OpenCPI User Guide.

This document assumes a basic understanding of the Linux command line (or “shell”) environment.

Document Revision History

Table 1: OpenCPI Analog Devices ADRV9361-Z7035 Getting Started Guide: Revision History
OpenCPI Version	Description of Change	Date
v2.3	Initial Release	6/2021

Overview

The ADRV9361-Z7035 is a System on a Module from Analog Devices. See the Analog Devices https://wiki.analog.com/resources/eval/user-guides/adrv9361-z7035 User Guide for more information about the module.

The OpenCPI HDL (FPGA) platform for the ADRV9361-Z7035 is called the “adrv9361”.

OpenCPI has been tested on the ADRV9361-Z7035 mated with ADRV1CRR-BOB breakout board.

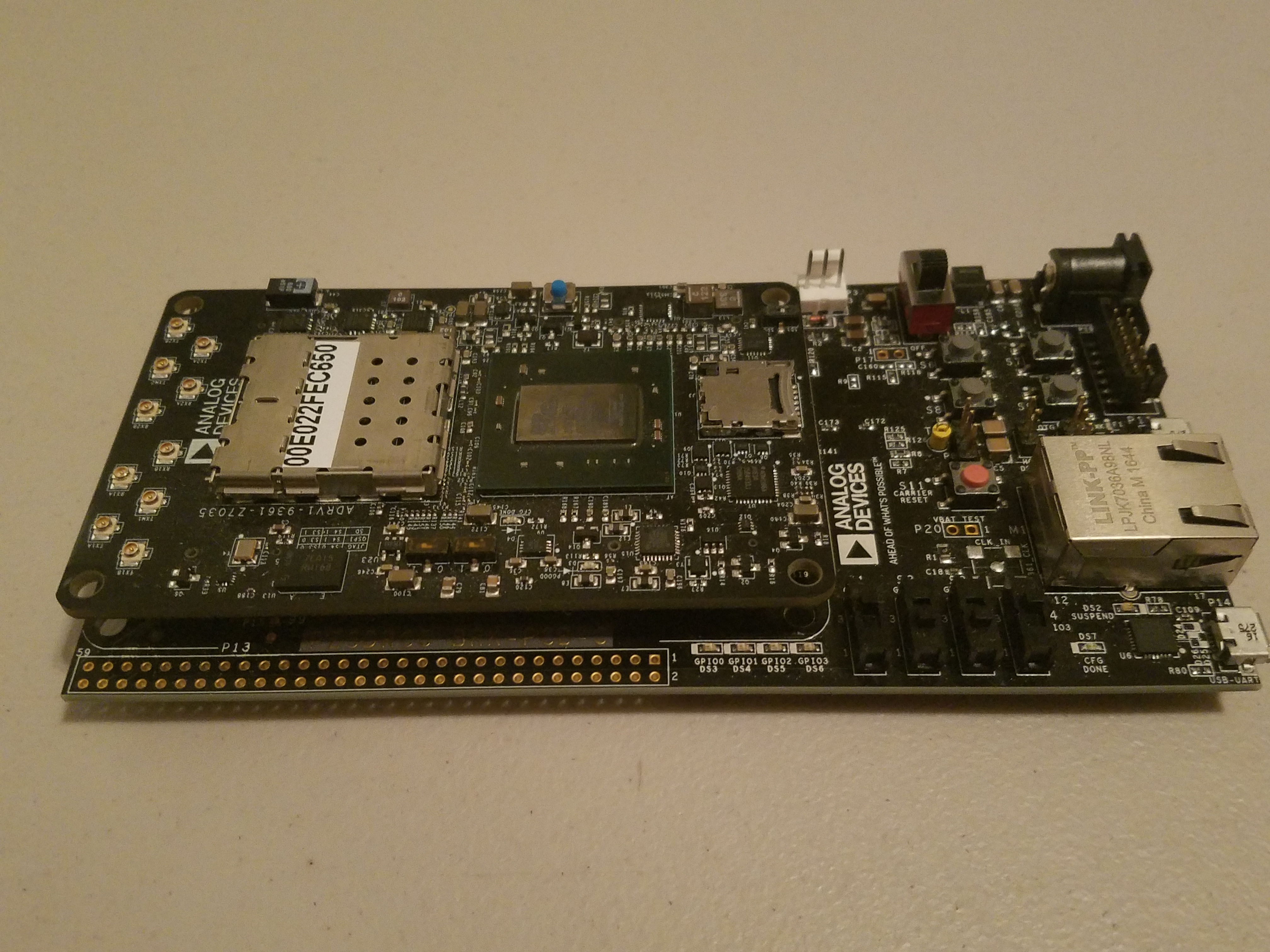

Figure 1: ADRV9361-Z7035 Connected to ADRV1CRR-BOB Carrier Board

Table 2: lists the items required in setting up the ADRV9361-Z7035 for OpenCPI installation and deployment.

Table 2: ADRV9361-Z7035 Items and their Use in OpenCPI Installation and Deployment
Item	Used for…
ADRV9361-Z7035 SOM	OpenCPI target embedded system
ADRV1CRR-BOB	Breakout Board Carrier board for target embedded system
Power supply	+5V Power source for ADRV9361-Z7035 SOM
1 Gigabit Ethernet cable	Setting Up the ADRV9361-Z7035 for OpenCPI Network-Mode Operation (Optional)
Micro-USB-to-USB cable	Establishing a Serial Console Connection for the ADRV9361-Z7035 SOM
Standard SD card (8GB or larger)	Setting up the SD Card for the ADRV9361-Z7035 (Contents not used for OpenCPI installation/deployment)
U.FL-to-SMA adapters (2)	Not used for OpenCPI installation/deployment
Getting started guide	General information about ADRV9361-Z7035.

Enabling OpenCPI Development for the ADRV9361-Z7035 SOM

This section gives information about the ADRV9361-Z7035 SOM to use when following the instructions in the chapter “Enabling OpenCPI Development for Embedded Systems” of the OpenCPI Installation Guide.

Note

The instructions in the next sections assume that the basic OpenCPI installation for the development host has already been done. If it hasn’t, follow the instructions in the chapter “Installing OpenCPI on Development Hosts” of the OpenCPI Installation Guide before proceeding to follow the instructions in these sections.

Installation Steps for the ADRV9361 Platform

This section contains information to be applied to the tasks described in the section “Installation Steps for Platforms” of the OpenCPI Installation Guide.

Supported OpenCPI Platforms and Vendor Tools

Table 3: lists the OpenCPI software (RCC) and hardware (HDL (FPGA) platforms used for the ADRV9361-Z7035 SOM and the third-party/vendor tools on which they depend.

Table 3: Supported OpenCPI Platforms for the ADRV9361-Z7035 and their Dependencies
OpenCPI Platform Name	Description	OpenCPI Project/Repo	Required Third-Party/ Vendor Tools



`xilinx19_2_aarch32`	Xilinx Linux from 2019Q2 (2019.2) for Zynq-7000	`ocpi.core` built-in	Xilinx Vitis™ SDK 2019.2 Xilinx Binary Zynq Release 2019.2 Xilinx Linux `git` clone Xilinx Linux tag: `xilinx-v2019.2`







`adrv9361`	Analog ADRV9361 Zynq FPGA/PL	`ocpi.osp.analog`	Xilinx Vivado® Licensed

Notes about the OpenCPI platforms listed in the table:

xilinx19_2_aarch32 is the primary RCC platform for the ADRV9361-Z7035 SOM.
The xilinx19_2_aarch32 RCC platform is configured for DHCP.
The OSP for the adrv9361 HDL platform is named analog to plan for possible future support of other analog devices platforms.

Installing the Vendor Tools for the OpenCPI Platforms

Follow the instructions in the section “Installing Xilinx Tools” in the chapter “Installing Third-party/Vendor Tools” in the OpenCPI Installation Guide to install the Xilinx tools listed as platform dependencies in Table 3:.

Note

Perform this step first, before installing/building the OpenCPI platforms for the ADRV9361-Z7035.

Installing and Building the OpenCPI Platforms for the ADRV9361-Z7035

After installing the required vendor tools, follow the instructions in the section “Installation Steps for Platforms” in the OpenCPI Installation Guide to install and build the xilinx19_2aarch32 and adrv9361 platforms for the ADRV9361-Z7035.

Both these platforms must be installed and built with ocpiadmin install platform before proceeding to set up the SD card for the ADRV9361-Z7035. For example:

ocpiadmin install platform xilinx19_2_aarch32

ocpiadmin install platform adrv9361

See the ocpiadmin(1) man page for command usage details.

Note

The xilinx19_2_aarch32 platform is also used by other systems, such as the Avnet (Digilent) ZedBoard (in OpenCPI, the zed and zed_ise HDL platforms). If the xilinx19_2_aarch32 platform has already been installed and built for another supported system, it can apply to the ADV9361-Z7035 and does not need to be installed and built.

Building the platforms results in a single executable FPGA test application named bias that is ready to run. It can be used to verify the installation and any assemblies of the adrv9361 OSP itself. The bias test application is based on the testbias HDL assembly. Both bias and testbias reside in the ocpi.assets built-in project.

Installation Steps for the ADRV9361-Z7035 After Its Platforms Have Been Installed

This section contains information to be applied to the tasks described in the section “Installation Steps for Embedded Systems After Their Platforms Have Been Installed” in the OpenCPI Installation Guide.

Setting Up the ADRV9361-Z7035 for OpenCPI Network-Mode Operation (Optional)

OpenCPI allows three modes of operation on embedded systems: network mode, standalone mode, and server mode (see the beginning paragraphs in the section “Installation Steps for Systems after their Platforms are Installed” of the OpenCPI Installation Guide for details).

Using network mode for OpenCPI on the ADRV9361-Z7035 requires establishing an Ethernet connection from the ADRV9361-Z7035 SOM to a network that supports DHCP.

There is one Ethernet port located on the ADRV1CRR-BOB carrier board. Use the 1-Gigabit Ethernet cable to connect this port to the DHCP-supported network.

Setting up the SD Card for the ADRV9361-Z7035

The ADRV9361-Z7035 boots from a SD card. Enabling OpenCPI on the ADRV9361-Z7035 requires creating a bootable SD card that replaces the factory SD card supplied with the system on module.

Follow the instructions in the subsections “Preparing the SD Card Contents” and “Writing the SD Card” in the section “Installation Steps for Systems After Their Platforms are Installed” of the OpenCPI Installation Guide to create a bootable SD card that enables the ADRV9361 for OpenCPI.

Note

The recommended method described in the OpenCPI Installation Guide is to make a raw copy of the manufacturer-supplied card to a new card, preserving the manufacturer’s formatting and content, and then remove the original files from the raw copy and copy the files from OpenCPI.

For the ADRV9361, be sure to remove all the original contents from the raw copy you create from the factory SD card. OpenCPI provides all of the necessary files for installation and deployment on the ADRV9361, and the presence of any factory-supplied contents can cause problems with this process.

Should you need to format an SD card for the ADRV9361, it should be a single FAT32 partition.

The bootable SD card slot is located on the ADRV9361-Z7035 SOM. To eject an SD card, gently slide the holder to insert the SD card then slide it back to lock it in.

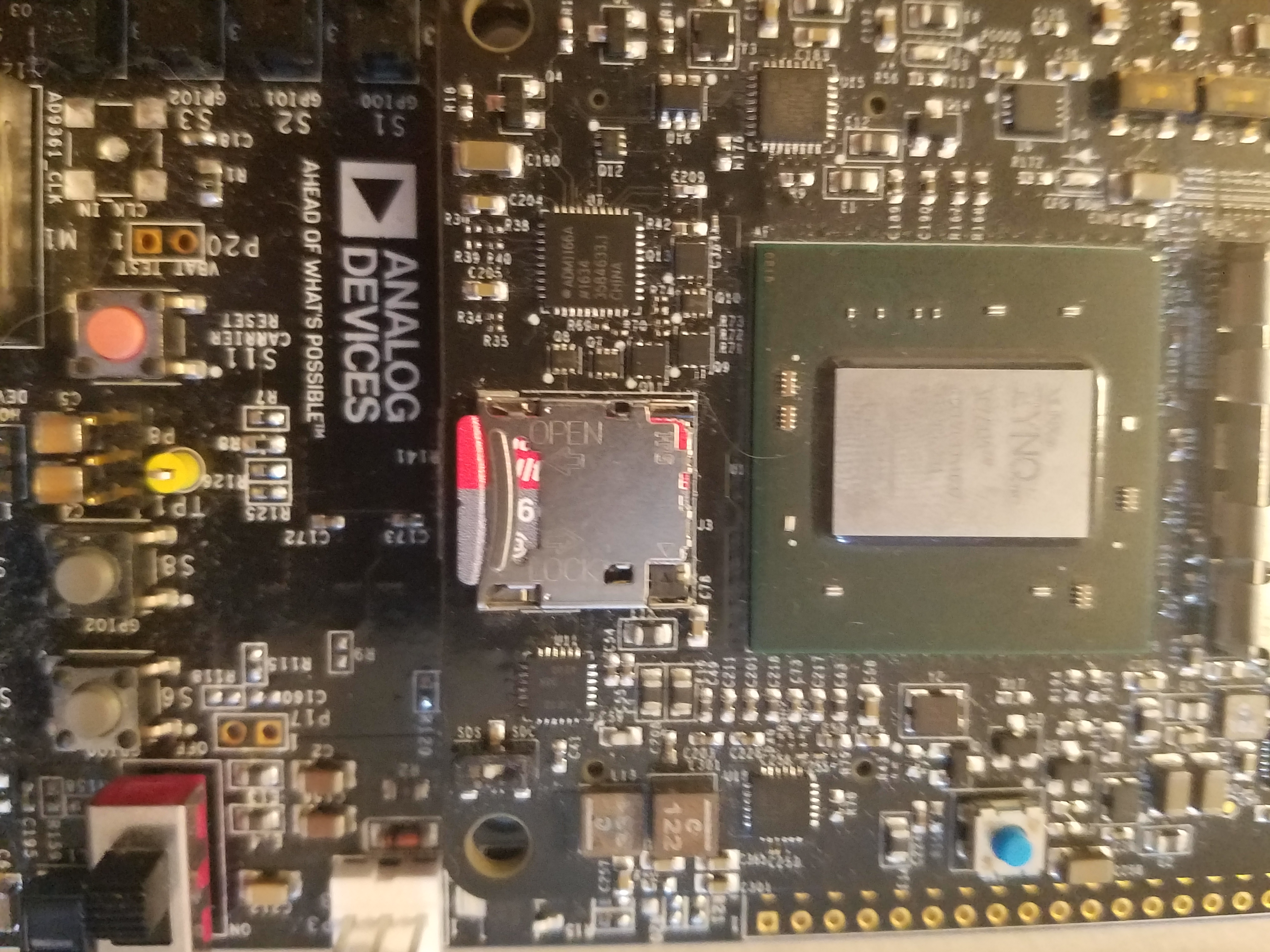

Figure 2: ADRV9361-Z7035 SOM: Top SD Card Holder

Note

The ADRV9361-Z7035 SOM provides 10 U.FL (50 Ohm) connectors. These connectors are not relevant to enabling OpenCPI on the ADRV9361-Z7035. See the Analog Devices ADRV9361-Z7035 User Guide for details about their function.

Establishing a Serial Console Connection for the ADRV9361-Z7035 SOM

Follow the instructions in the section “Establishing a Serial Console Connection” in the OpenCPI Installation Guide to set up a serial console connection between the ADRV9361-Z7035 and the development host.

On the ADRV1CRR-BOB, the micro-USB serial port is located on the carrier board’s IO corner of the PCB (see Figure 3:) and is labeled USB-UART. Connect the micro-USB to USB-A cable supplied in the product package from this port to the development host.

The ADRV9361-Z7035’s console serial port operates at 115200 baud.

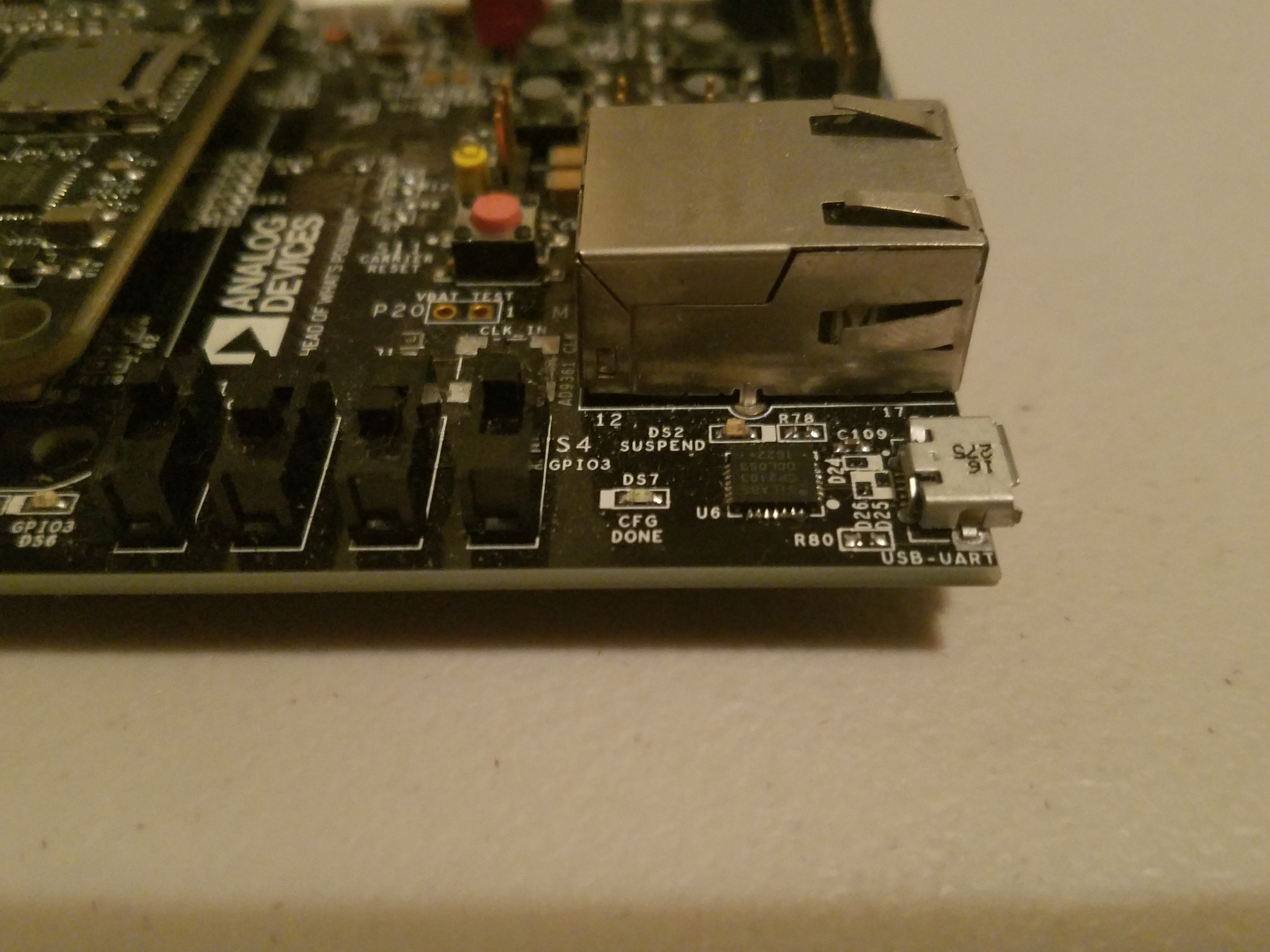

Figure 3: ADRV9361-Z7035 SOM: USB to Serial Console Port

Configuring the Runtime Environment on the adrv9361 Platform

Follow the instructions in the section “Configuring the Runtime Environment on the Embedded System” in the OpenCPI Installation Guide.

The ADRV9361-Z7035 is initially set with root for user name and password.

Running the Reference Application

Once you have successfully set up OpenCPI and the ADRV9361-Z7035 SOM, you can run the FSK Digital Radio Controller reference application, which is located in projects/assets/applications/fsk_dig_radio_ctrlr.

Documentation for this reference application is currently unavailable.
